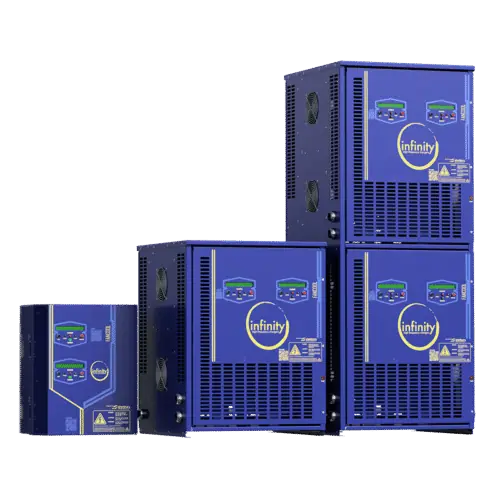

Multi-output charger configurations
One AC input. More ways to charge.
Range features and configuration
Bring charging points together with a single AC input. Specify each output around the equipment using it rather than assuming every truck needs the same charger.
Power & configuration
Available across three-phase configurations. Multiple ports do not create extra site capacity: total input demand and simultaneous use must be designed together.
Open archived February 2026 range datasheet (PDF, 0.3 MB)Battery, supply and connection
Match the profile
Chemistry, capacity, voltage and charge limits determine how your battery should be charged.
Check the supply
Confirm phase, voltage, available circuit capacity and total charging demand with your installer.
Make connection easy
Confirm connector type, polarity, cable length, mounting and any battery communication requirements.
Several vehicles sharing a charging area
Record the battery and connection for each output, the vehicles that may charge at the same time and their required ready times. Review the cabinet’s total AC input and site capacity. A shared input does not remove the combined charging demand.
Charging bay checklist ↗ · Compare the published model outputs ↗
Plan the charging installation.
Mounting, cable reach and access matter as much as the charger rating. Share your layout so we can discuss a configuration for your operation.
Discuss your installation ↗Is this the right range?
Typical applications
Several battery-powered vehicles sharing a charging area, with each output specified for its battery and connector.
When to choose a different range
Choose a single-output range where one connection meets the requirement. Several outputs share the AC supply: review combined input demand and simultaneous use rather than multiplying a single-output rating.
Compare single-output modules · Selection checklist · Warranty scope
Compare published single-output ratings
Representative models from the existing reviewed data. These are module ratings, not combined outdoor or multi-output cabinet specifications. Follow each model link for its source date and availability limits. A dash means no published output at that voltage.
| Model | kW | Phases | AC input A | 24 V output A | 48 V output A | 80 V output A |
|---|---|---|---|---|---|---|
| SFR48-4 | 4 | 3 | 7 | 135 | 80 | — |
| SFR80-6.5 | 6.5 | 3 | 11 | 90 | 90 | 80 |
| SFV48-8 | 8 | 3 | 14 | 200 | 160 | — |
| SFX80-18 | 18 | 3 | 31 | 210 | 210 | 210 |
Maximum output requires a matched battery profile and approved charge limits. Use the selector to compare hardware at your battery voltage; its lead-acid planning time is not a battery-specific guarantee.
